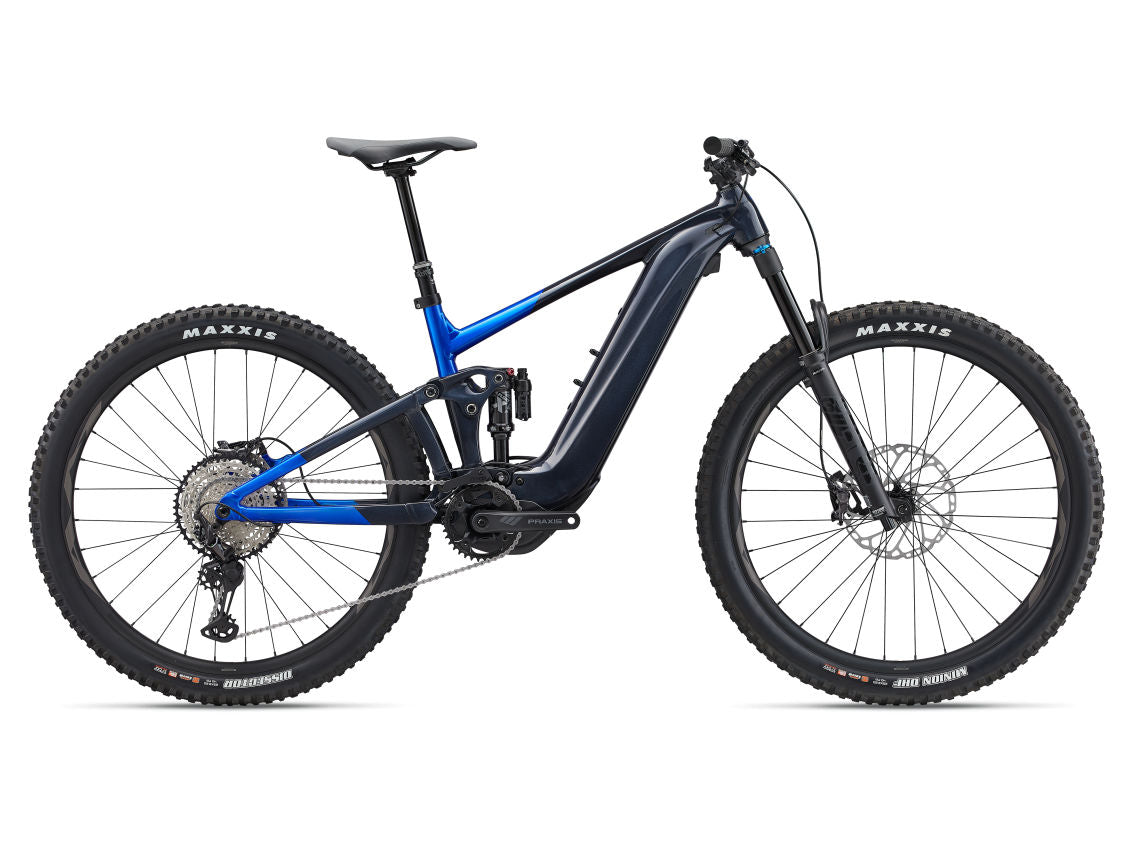

Giant Trance X E+ 1

Smooth, powerful support

SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.

Trail-riding control

Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.

Adaptable to the terrain

Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

• Motor
  Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
• Controller
  Giant RideControl Ergo3, grip integrated remote
• Display
  Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
• Battery
  Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminiuim casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
• Charger
  Giant EnergyPak 6A smart charger, 60% in 3:00h
• Connectivity
  Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
• Colours
  Gloss Cold Night/Cobalt Blue
• Frame
  ALUXX SL-grade Aluminium, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
• Fork
  Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Kabolt-X 110
• Shock
  Fox Float X Performance, EVOL Large Volume sleeve, 3-Pos Lever, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
• Handlebar
  Giant Contact 35 Trail, 35x780mm
• Grips
  Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
• Stem
  Giant Contact SL 35
• Seatpost
  Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
• Saddle
  Giant Romero
• Pedals
  Flatpedal
• Shifters
  Shimano Deore XT 1x12
• Front Derailleur
  MRP HD2 co-moulded chain guide
• Rear Derailleur
  Shimano Deore XT, 12-speed, Shadow+
• Brakes
  Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm [F], 203mm [R]
• Brake Levers
  Shimano Deore XT, I-spec EV
• Cassette
  Shimano CS-M7100-12, 10-51T, 12-speed
• Chain
  KMC e.12 Turbo, EcoProteq, e-bike optimised
• Crankset
  Praxis Wave tm 36T Cold Forged 4130 premium steel chain ring 104BCD Praxis e-crank arm set (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T
• Bottom Bracket
  n/a
• Rims
  Giant AM30, Tubeless ready, 30mm inner width, 29"
• Hubs
  Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
• Spokes
  Sapim E-Lite [R] Race [F], e-bike optimised
• Tyres
  Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
• Extras
  Tubeless kit (liquid, valves, levers, manual, tool)
• Lock
  Torx 25 Battery Lock with built-in Torque limiter
