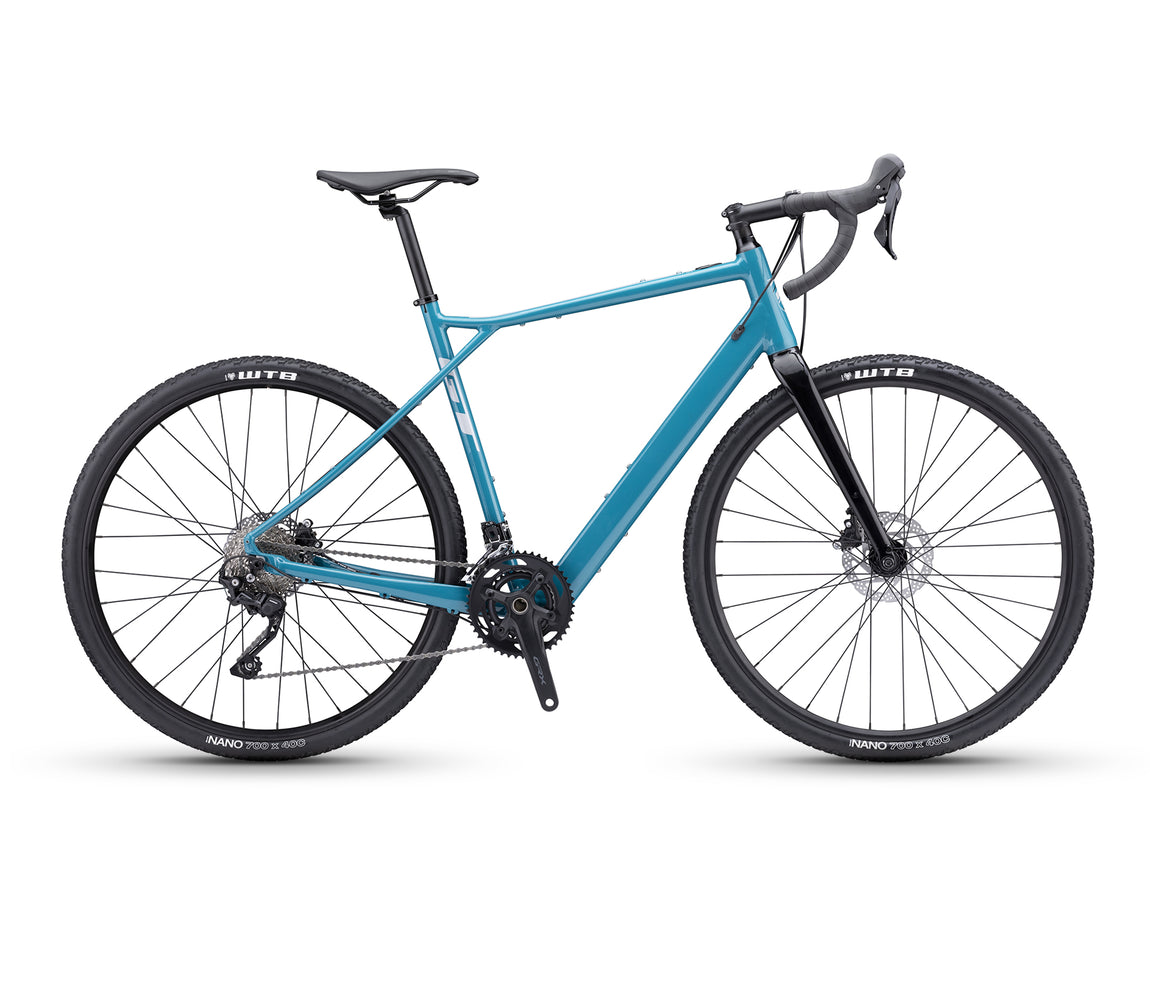

GT E-Grade Bolt

GT E-Grade Bolt

£2,000.00 GBP
£2,700.00 GBP £2,000.00 GBP
Sale Sold out
Taxes included.

Please note: we have an ex-demo available in the medium size, this is the last remaining unit in medium. Please call 01438 748104 if you'd like to know more about this bike.

Overview

Adding pedal assist to Bike Radar's gravel bike of the year? Yep. With the MAHLE ebikemotion drive unit and the Grade's floating seat stays you'll have all day comfort and confidence for whatever comes your way.

  • Ebikemotion 35+ with 250wh battery
  • Shimano GRX40000 2x10 drivetrain
  • WTB Nano 700x40c tires

Key Features

Frame

  • Frame - Grade Alloy Triple Triangle frame, Ebikemotion specific design, Internal Battery, Tapered Head Tube
  • Fork - GT Grade E-Carbon, 1.5" Tapered Carbon Steerer, 12x100 Thru-Axle
  • Wheel size - 700c

Wheels

  • rims - Shining, 32h
  • front hub - Formula, 12x100mm, 32H
  • rear hub - eBikemotion X35+, 32H
  • front tyre - WTB Nano Comp, 700 x 40
  • rear tyre - WTB Nano Comp, 700 x 40

Drivetrain

  • rear derailleur - Shimano GRX
  • shifters - Shimano GRX400, 10-speed
  • rear cassette - Shimano HG500, 11-34T
  • chain - KMC X10, 10-speed
  • crank - Shimano GRX, 46/30
  • bottom bracket - Shimano BSA RS500
  • chain device - Chain Guide
  • pedals - Not included

Cockpit

  • handlebar - GT Butted 6061 Alloy, 16° Flare Drop
  • stem - GT All Terra 3D Forged Alloy, 31.8
  • grips - GT Grip Bar Tape w/Gel, 3.5mm
  • headset - 1.5" Lower to 1-1/8" Upper w/ Reducer, 25mm Alloy Top Cap
  • seatpost - GT All Terra Two Bolt Alloy
  • saddle - Fabric Scoop Shallow/ Sport, Steel Rails

Brakes

  • brakes - Shimano GRX 400 Hydro Disc, 160/160mm RT56 Rotors


E-Bike

  • drive unit - MAHLE ebikemotion X35 250W
  • battery - MAHLE ebikemotion X35 250Wh
  • charger - X35 Charger

 Fit Guide

XS 5'0 - 5'5"
SM 5'3" - 5'8"
MD 5'7" - 5'11"
LG 5'11" - 6'2"
XL 6'2" - 6'5"

Geometry

Sizes (mm) SM MD LG XL
Seat tube length 458 505 553 600
Seat tube angle effective 73 ° 73 ° 73 ° 73 °
Top tube horizontal 545 562 581 601
Top tube actual 523 542 562 585
Head tube angle 70 ° 71 ° 71 ° 71 °
Standover 741 782 822 862
Head tube length 124 150 183 214
Wheelbase 1062 1065 1086 1107
Front center 617 621 641 662
Chainstay length 455 455 455 455
Bottom bracket drop 75 75 75 75
Bottom bracket height 284 284 284 284
Fork rake 55 55 55 55
Stack 550 577 603 630
Reach 385 405 425 445
