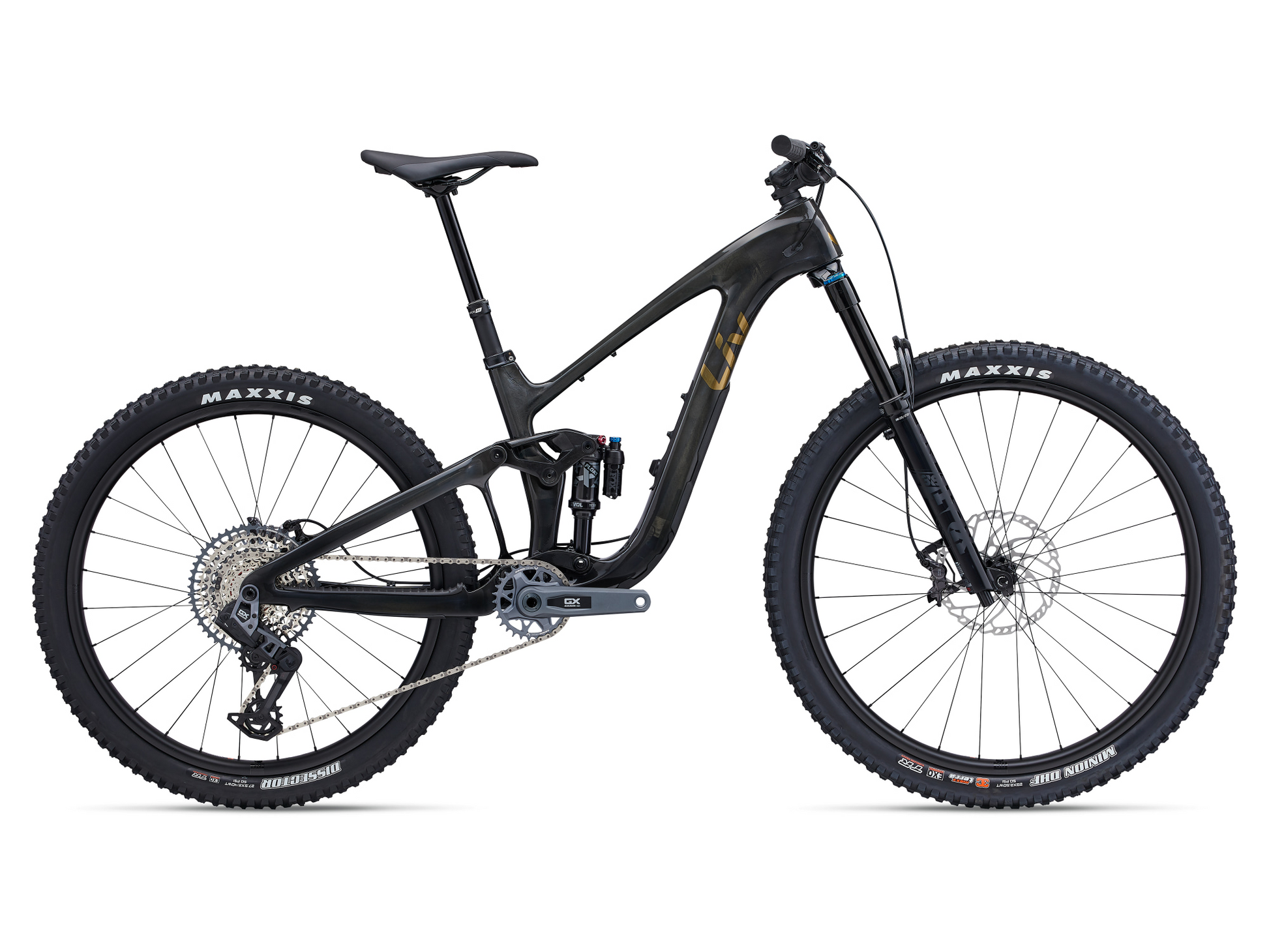

Liv Intrigue X Advanced 1 Raw 2025
Liv Intrigue X Advanced 1 Raw 2025
Couldn't load pickup availability
The exceptionally versatile Intrigue X Advanced was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X Advanced delivers extra performance and fun.
Performance Mid Travel Trail
Constructed with lightweight Advanced-grade composite for an agile, responsive ride, the frame also boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.
Adjustable Frame Geometry
For ultimate adjustability, the Intrigue X Advanced features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
| Fork | Fox 36 Performance Elite, 150mm, GRIP 2 damper, Boost 15x110 Kabolt X, tapered, 44mm offset |
|---|---|
| Hubs | [F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 6 bolt, 72t POE, 6-pawl, sealed |
| Rims | Giant TRX WheelSystem, carbon rim, 30mm IW, 40mm OW, 21mm H, Wide Guard technology XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 |
| Stem | Giant Contact SL, 35mm XS: 40mm, S/M/L: 50mm |
| Chain | SRAM GX Eagle |
| Frame | Advanced-grade composite front and rear triangles, 140mm Maestro suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage |
| Tires | [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless XS/S: [R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless M/L: [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Brakes | Shimano XT M8120, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm |
| Saddle | Liv Sylvia |
| Spokes | Sapim Laser straight pull, DBL technology |
| Crankset | SRAM GX Eagle T-Type, 30t, 55mm chainline XS: 165mm, S/M/L: 170mm |
| Seatpost | Giant Contact Switch AT, adjustable dropper, remote XS/S: 140-170mm travel / 30.9 x 470mm M/L: 170-200mm travel / 30.9 x 530mm |
| Shifters | SRAM AXS Pod, 1x12 |
| Handlebars | Giant Contact SLR TR35, 20mm rise, composite XS/S:M 760mm, L: 780mm |
| Rear Shock | Fox Float X Performance Elite, 185x52.5, custom tuned for Liv |
| Tape/Grips | Liv Tactal Pro single lock-on |
| Brake Levers | Shimano XT BL-8100 |
| Bottom Bracket | SRAM DUB, press fit |
| Rear Derailleur | SRAM GX Eagle, T-Type AXS |
| Front Derailleur | N/A |
| Accessories & Extras | tubeless prepared, 2.5" max tire size, 34t max chainring size, 3M tailgate protector, integrated down tube storage bag |
| Cassette/Freewheel | SRAM GX CS 1275 T-Type, 10x52 |
