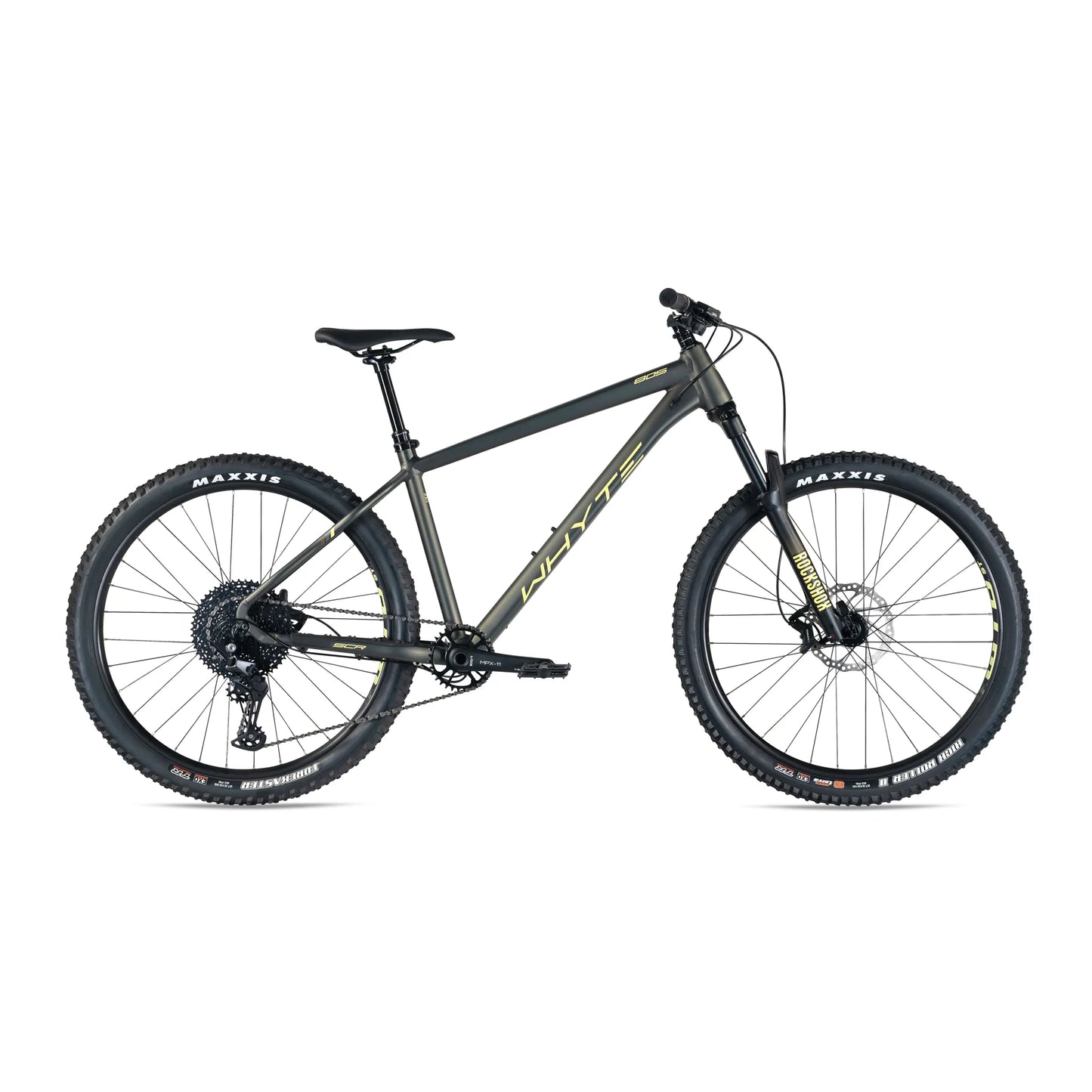

Whyte 805 V4 Trail Hardtail

Our 800 hardtails have always offered a fine blend of fun, control and speed. Our SCR design, with no need for an inner chainring clearance, means our engineers were able to re-shape our custom chainstays for improved agility and a more dynamic ride.

The 800 Series frame uses the very latest Whyte geometry, based around a longer top tube, a short stem and wide 780mm bar, providing exceptional handling, balance and control. The 800 series bikes also feature a 120mm travel fork, for trail-bike levels of performance.

A Boost 148mm rear dropout allows up to a 2.8" tyre to be fitted and provides increased mud clearance for year-round trail riding.

Specification

Model 805

Model Group Sport Hardtails

Colour Matt Moss with Yellow & Khaki

Frame 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Headtube, Get A Grip Seat Clamp System, Internal Cable Routing with BBX63 and Chainstay Post

Mount Dropouts 12mm X 148mm Boost

Fork RockShox Recon RL 27.5”, 120mm Travel, 37mm Offset, Solo Air, Fast Black Coating, Adjustable Rebound, Tapered Alloy Steerer, 110mm x 15mm Boost, Maxle Lite

Headset FSA No. 57B Orbit ZS, 1 1/2” Lower and 1 1/8” Upper Caged Bearings

Rear Hub Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole

Front Hub Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole

Spokes DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples

Rims WTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole

Tyres Maxxis High Roller II TR 27.5”x 2.4” 60TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Forekaster TR 27.5” x 2.35” 60TPI, EXO Sidewall Protection, Dual

Compound, Rear

Shift Levers Shimano Deore SL-M5100, 11 Speed

Front Derailleur N/A

Rear Derailleur Shimano Deore RD-M5100-SGS, Shadow Plus, 11 Speed

Cassette SunRace CSMS8, ED Black, 11-51, 11 Speed

Chain KMC NPBK 11 Speed

Crankset Whyte, Forged 2pcs Cranks, Direct Mount 32T Narrow/Wide Chainring, 170mm, 11 Speed

Bottom Bracket BSA, Cartridge Bearings, 73mm

Seatpost KS, 30.9mm, S/M 125mm, L/XL 150mm Travel, Alloy Remote Lever

Seat Whyte Custom

Bar Whyte 6061 Alloy, 15mm Rise, 31.8mm, S 760mm Wide, M/L/XL 780mm Wide

Stem Whyte Alloy, 45mm Extension

Grips Whyte Lock-on Enduro Grip

Front Brakes Tektro HD-M535 , 4 Piston, 180mm, 2.3mm gauge, 180mm Disc

Rear Brakes Tektro HD-M535 , 4 Piston, 180mm, 2.3mm gauge, 180mm Disc, Internal Routing

Brake Levers Tektro HD-M535

Pedals Fibre Reinforced Composite Platform
